50 TPD BOP Fertilizer Plant for Auriga BOP
50 t/day BOP fertilizer plant in Nooriabad, Karachi — designed, manufactured and installed by SEMZON Engineering.
- Nooriabad, Karachi
- 50 t/day
- Fertilizer
50 t/day
Plant capacity
Auriga BOP
Client
Nooriabad, Karachi
Location
50 t/day
Capacity
Fertilizer
Plant type
Project Overview
SEMZON built a 50-ton-per-day bio organic phosphate (BOP) plant for Auriga BOP in Nooriabad, Karachi.
The line runs from storage bins and elevators through a dual-agitator blender and rotary granulator to two 33-ft rotary dryers with cyclones and blowers, a screener, a rotary separator and the packing section, linked by belt conveyors.
- Storage bins & elevators
- Dual-agitator blender
- Rotary granulator
- Two 33 ft rotary dryers
- Cyclones & blowers
- Screening, separation & packing
Nooriabad, Karachi

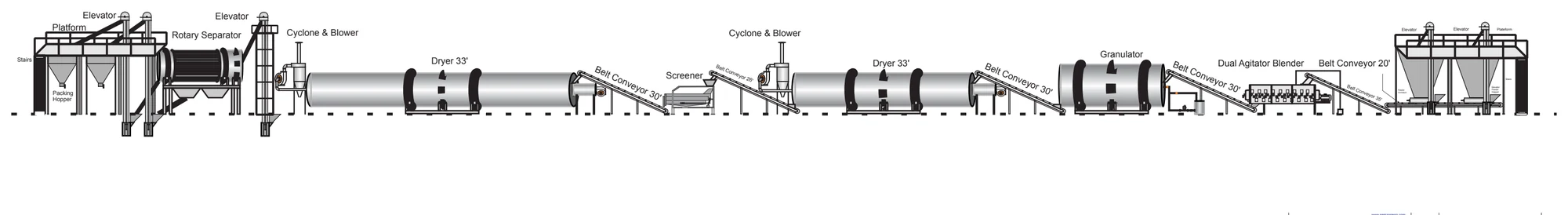

Process Flow Drawing
SEMZON flow diagram of the 50 TPD BOP fertilizer plant. Click the drawing to view it full size.
- Click or tap the drawing to enlarge · swipe sideways on phones
Main Equipment
Dual-agitator blender
Blends raw materials and additives before granulation.
Rotary granulator
Rolls the blend into round granules.
Rotary dryers 33 ft
Two dryers remove moisture and harden the granules.
Cyclones & blowers
Capture dust from the dryer exhaust.
Screener & rotary separator
Separate on-spec granules from oversize and fines.
Packing section
Fills granules into bags for dispatch.
Project Gallery

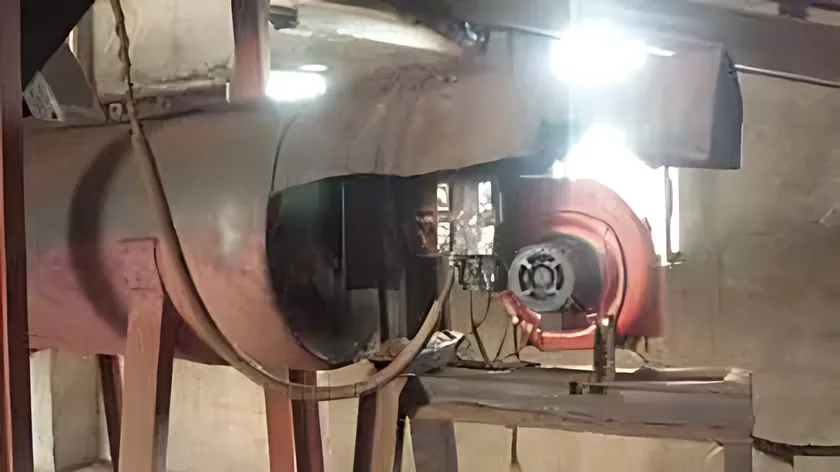

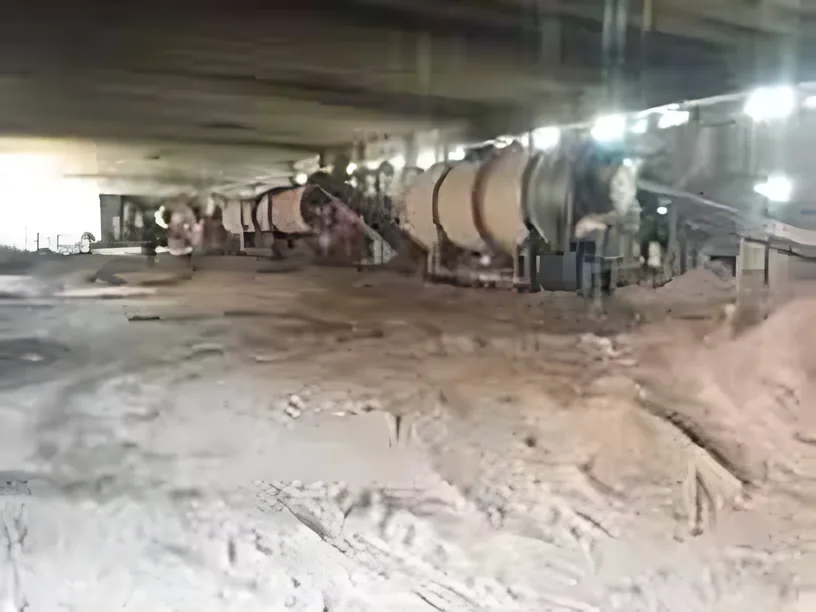

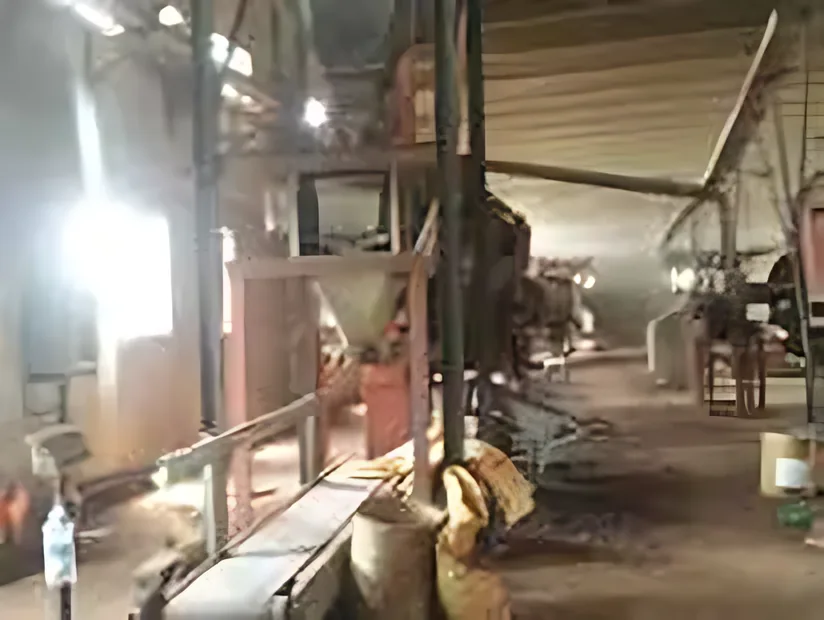

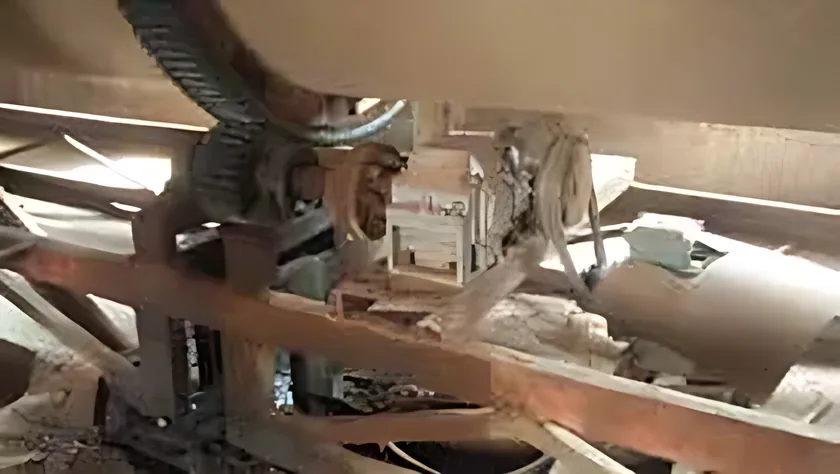

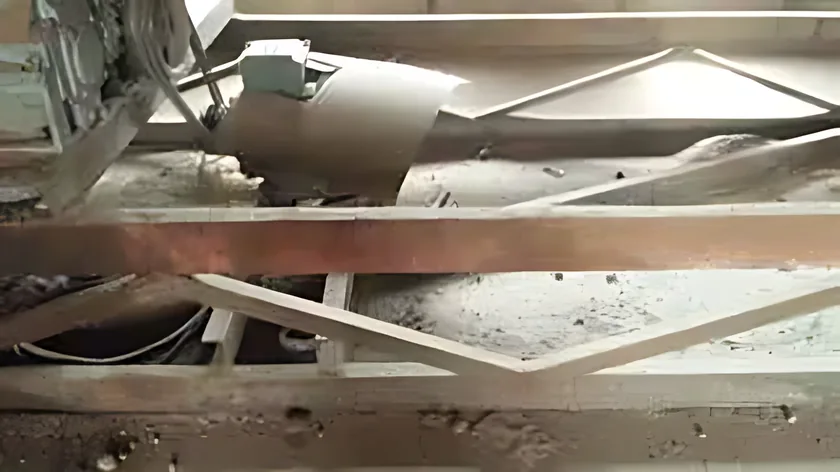

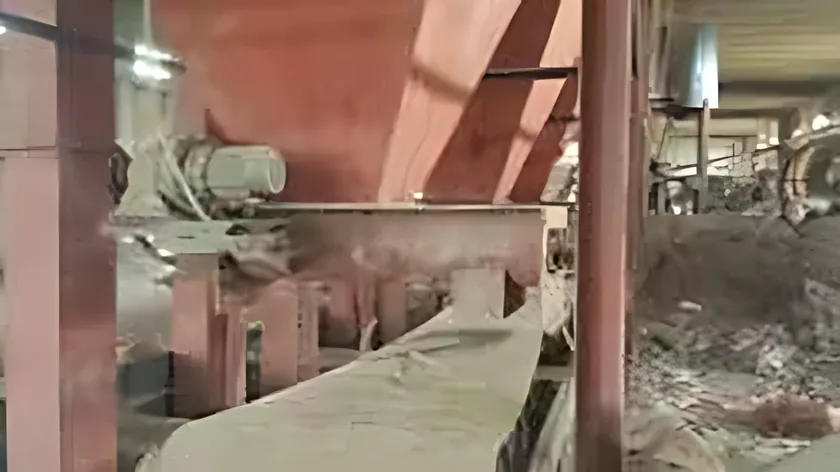

Photos from installation and commissioning. Click any photo to enlarge.
Solution & Industry
SSP, BOP, NPK and compost fertilizer plants, plus grain pre-cleaning.
